MAGAZINE CLAMP

878405000655 100005447

Secures Extended Mag Tube & Mounts Accessories Up Front

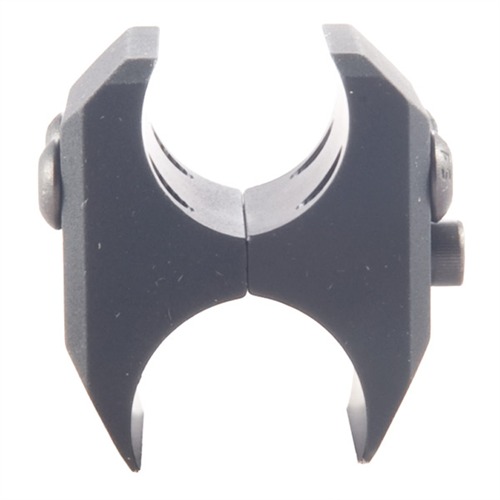

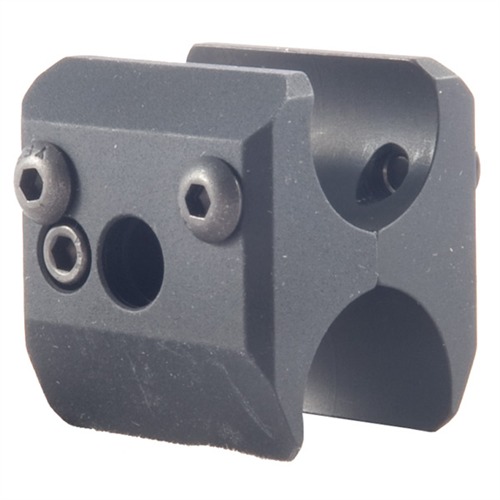

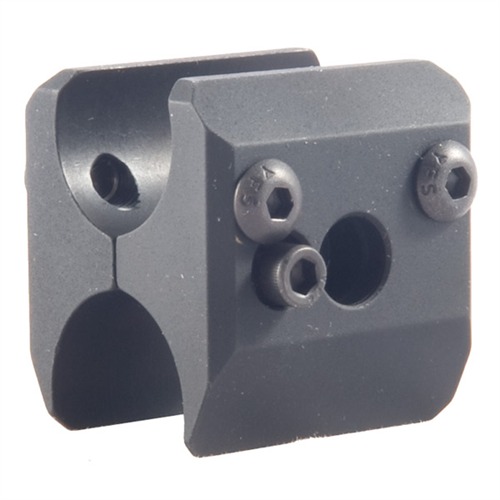

Lightweight, aluminum clamp locks barrel and extended magazine tube together to form a rigid, rock-solid assembly. Can be used as a tactical light mount: install a 1" diameter light in one side of the clamp and secure the other side to the barrel or magazine. Left- and right-side sling swivel sockets accept standard pushbutton swivels. Two steel Allen head screws pull the clamp halves together for a tight, non-slip hold. Also available with a 2" long, 4-slot, MIL-STD 1913 Picatinny rail that can be installed in the 3- or 9- o’clock position, for mounting additional accessories. Fits Remington 870, 1100, 11-87 and Benelli M1, M2, M4, M1014, 12 gauge shotguns.

SPECS: 6061 T6 aluminum, mil-spec Type 3 hardcoat anodized, matte black. Clamp - 1½" (3.8cm) long, 17⁄16" (3.5cm) wide, 15⁄8" (4.1cm) high. Rail - 2" (5.1cm) long. Includes mounting hardware. Fits Remington 870/1100/11-87 and Benelli M1/M2/M4/M1014, 12 gauge only.

Altro...

Assicura il Tubo del Caricatore Esteso e Monta Accessori Anteriormente

Il morsetto leggero in alluminio blocca insieme il canna e il tubo del caricatore esteso per formare un insieme rigido e solidissimo. Può essere utilizzato come supporto per torcia tattica: installa una torcia del diametro di 1" da un lato del morsetto e assicura l'altro lato alla canna o al caricatore. Le prese per le cinghie a slitta sul lato sinistro e destro accettano i moschettoni a pulsante standard. Due viti in acciaio con testa esagonale serrano le metà del morsetto per una presa sicura e antiscivolo. Disponibile anche con un binario Picatinny MIL-STD 1913 lungo 2", con 4 slot, che può essere installato nella posizione delle 3 o delle 9 in punto, per il montaggio di accessori aggiuntivi. Compatibile con fucili a pompa Remington 870, 1100, 11-87 e Benelli M1, M2, M4, M1014, calibro 12.

SPECIFICHE: Alluminio 6061 T6, anodizzato duro secondo le specifiche militari di Tipo 3, nero opaco. Morsetto - lungo 1½" (3.8cm), largo 17⁄16" (3.5cm), alto 15⁄8" (4.1cm). Binario - lungo 2" (5.1cm). Include hardware di montaggio. Compatibile con Remington 870/1100/11-87 e Benelli M1/M2/M4/M1014, solo calibro 12.

Altro...

Punteggi dei clienti per MESA TACTICAL PRODUCTS TACTICAL BARREL/MAG CLAMP, ONLY

Numero di punteggi: 8
Da brownells.com: 8
Punteggio medio: 3,3

Great clamp! (08/03/2013)

Installed on my Remington 1100 with a Dave's Metal Works mag tube extension. Clamps perfectly around the mag tube.
There is a tiny gap under the barrel, but the left and right sides are solid and locked against the barrel.
Well designed with a screw on the left and right side of the clamp to even out torque and clamping forces. Take your time and you'll only install this once.(aside from having to take down your 1100/870 for cleaing around the mag tube especially for 1100 owners)
Only gripe is that you get one allen wrench. The one supplied fits the screws to clamp the two pieces together, but does not fit the 4 other screws for mounting a rail or sling point. No big deal, but would have been nice to be included.
Brownell's price was right in line with competitors. In fact, I ordered the same clamp from a smaller supplier. Unfortunately, their stock keeping is terrible and I found out later it was out of stock and back ordered for 3 weeks or more. So I paid an extra $10(Brownell's was $3 more for the part and shipping was free from the smaller supplier, but deal was indeed "too good to be true.")
Brownell's came through for me big time!
Very satisfied and highly recommend this clamp to all shotgun enthusiasts.

Mesa tactical barrel clamp (20/06/2015)

Used on my 870 tactical fit and finished were awesome. While shooting the clamp slips on the barrel and the extension tube and it ruined my finish I called Mesa tactical and they they sent me thoes rubber things that going between the receiver and the sidesaddle carrier and said to try it by than I gave up no matter how tight I torque the bolts the clamp still slipped

Works well with Win. 1300 Defender (15/01/2010)

Fit Perfect on a Win. 1300 Defender. Put it on mag tube & barrel and I mounted a Streamlight on the rail. I can activate the light with my thumb WITH my hand gripping the forend. That's a good setup.

Excellent piece (08/02/2010)

Absolutely bulletproof part and very well built.
All threads have Heli-coil inserts... and it fits perfectly on my 870.
I thought it was a tad pricey, but after handling it, it's worth every penny. I wouldn't hesitate to buy another.

Short rail (28/10/2010)

The mount is well made and solid. The picatinny rail however is about half the length shown. It still works fine for my scout light, or I would have pushed the issue. If the rail had been as shown, five stars.

Fits Moss 590 really well (15/04/2013)

I bought both this clamp/mount as well the Nordic Components product (also avail. at Browmells) in an attempt to find a way to mount both a flashlight and a sling swivel on a standard Mossberg 590. While the Nordic product was advertised to fit the Mossberg 590 specifcally, it did not fit nearly as well as this product which appears to be directed toward the Rem 870.

The Nordic mount fit OK, but there was a considerable amount of barrel and magazine tube radius that were not in contact with the mount. This clamp from Mesa fit really well and had what appeared to be complete contact with the curvature of the barrel and the magazine tube. I am not sure how this would fit a Moss 590 A1 as I beleive the barrel is thicker on the A1 (larger radius ?), but it works quite well on the regular 590.

The four star rating is due to the fact that it seems that the holes in the halves of the mount were drilled and tapped prior to the application of whatever sort of black surface coating was applied. As a result, the first 0.25" of the screw holes were very difficult to screw into. Fortunately, it seems that an extra screw was provided, so I used it as a sacrificial "starter" and thread cleaner to allow for easier assembly.

This accessory is not cheap, but it is very well made and allows the use of standard push-button QR swivels and the option to install a rail for a flashlight or whatever other sort of rail-mounted accessory you want to hang out there. Note: you can install the rail on either side and both sides have sling attachment sockets, but whatever side you put the rail on, you will cover the sling attachment point

Lastly, if it matters and you haven't thought of it yet, you WILL need to remove this mount each time you want to remove the barrel for a thorough breech-end cleaning. This is true of any such barrel/mag tube clamp, so it's no indication of an inferior design with this product.

Bad Fit (15/01/2014)

I used this on a Remington 870P 20" Barrel and Tac Ordnance +3 Magazine Extension Tube and It fits too tight causing the barrel and magazine to stretch away from each other ultimately causing a magazine failure to feed shells because they get stuck where the Extension Tube connects to the Shot Tube. I really like this product I just wish it worked, Maybe I got a bad one, I'm contacting Mesa Tactical on this so I can see what my options are. Also I spend 2 days trouble shooting this and I am 100% sure that the issue is with the Mesa Tactical Magazine Clamp and not the Follower as I have tried 3 different followers in the trouble shooting, Plastic, Aluminum, Stainless Steel. I will Edit this review if they Mesa Tactical helps me out here I'm thinking I might have received one labeled as 870 when it could be mossberg, I dunno.

No good for 1301 Tactical (21/02/2016)

Due to the different diameters on the nordic mag extension tube, one is left with 2 choices when mounting this:

place it where the front sight interferes

or place it where it bridges 2 different diameters on the tube. Neither are conducive to a good fit.

Additionally, simply tightening it down has scuffed the barrel on my 1301 with 0 rounds through it; not that I planned to baby the gun, but this left me rather displeased.

The only reason I have not already shipped it back, and that it got a second star is because I haven't ruled out trying to use it on another gun yet...

Leggi più recensioni su brownells.com

129.9 149.9 2 EUR

N. prodotto: 100005447
MESA TACTICAL PRODUCTS TACTICAL BARREL/MAG CLAMP, ONLY
Parti Fabbricante: 90800 878405000655 Il morsetto leggero in alluminio blocca insieme il canna e il tubo del caricatore esteso per formare un insieme rigido e solidissimo. Può essere utilizzato come supporto per torcia tattica: installa una torcia del diametro di 1" da un lato del morsetto e assicura l'altro lato alla canna o al caricatore. Le prese per le cinghie a slitta sul lato sinistro e destro accettano i moschettoni a pulsante standard. Due viti in acciaio con testa esagonale serrano le metà del morsetto per una presa sicura e antiscivolo. Disponibile anche con un binario Picatinny MIL-STD 1913 lungo 2", con 4 slot, che può essere installato nella posizione delle 3 o delle 9 in punto, per il montaggio di accessori aggiuntivi. Compatibile con fucili a pompa Remington 870, 1100, 11-87 e Benelli M1, M2, M4, M1014, calibro 12.

129.9 EUR 1 129,90 € *

Tempi di consegna circa 12-16 giorni.
1 pz. nel magazzino USA

Caratteristiche: Adatto per: Remington Finitura: Opaco Black Modello: 870 Tipo: Morsetto

Aggiungi alla lista degli acquisti

Domande

Dettagli

Aggiungi alla lista degli acquisti

Domande

Top takeaways

Morsetto leggero in alluminio 6061 T6, anodizzato duro, nero opaco, compatibile con fucili a pompa Remington e Benelli calibro 12.
Può supportare una torcia tattica da 1" e include prese per cinghie a slitta per moschettoni a pulsante standard.
Disponibile con binario Picatinny MIL-STD 1913 lungo 2", con 4 slot, per il montaggio di accessori aggiuntivi.

Caratteristiche

Adatto per: Remington Finitura: Opaco Black Modello: 870 Tipo: Morsetto Peso della spedizione: 0,091kg Altezza di spedizione: 18mm Larghezza di spedizione: 71mm Lunghezza di spedizione: 213mm UPC : 878405000655

Dettagli dell'elemento

Made in Usa

N. prodotto: 100004032
MESA TACTICAL PRODUCTS TACTICAL BARREL/MAG CLAMP W/ PICATINNY RAIL
Parti Fabbricante: 90810 878405000754 Il morsetto leggero in alluminio blocca insieme il canna e il tubo del caricatore esteso per formare un insieme rigido e solidissimo. Può essere utilizzato come supporto per torcia tattica: installa una torcia del diametro di 1" da un lato del morsetto e assicura l'altro lato alla canna o al caricatore. Le prese per le cinghie a slitta sul lato sinistro e destro accettano i moschettoni a pulsante standard. Due viti in acciaio con testa esagonale serrano le metà del morsetto per una presa sicura e antiscivolo. Disponibile anche con un binario Picatinny MIL-STD 1913 lungo 2", con 4 slot, che può essere installato nella posizione delle 3 o delle 9 in punto, per il montaggio di accessori aggiuntivi. Compatibile con fucili a pompa Remington 870, 1100, 11-87 e Benelli M1, M2, M4, M1014, calibro 12.

149.9 EUR 1 149,90 € *

Tempi di consegna circa 12-16 giorni.
1 pz. nel magazzino USA

Caratteristiche: Adatto per: Remington Finitura: Opaco Black Modello: 870 Tipo: Morsetto
