Positive Stops At On & Off; Simple, Fast Installation

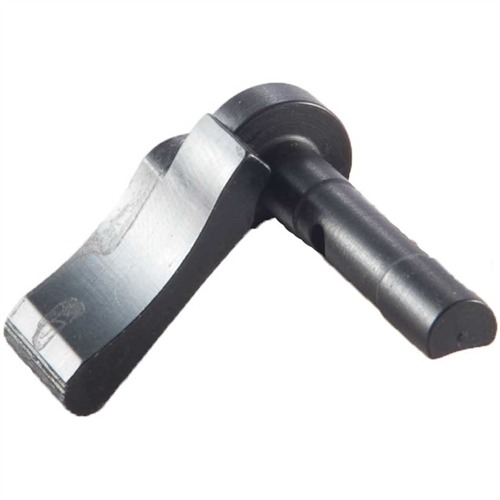

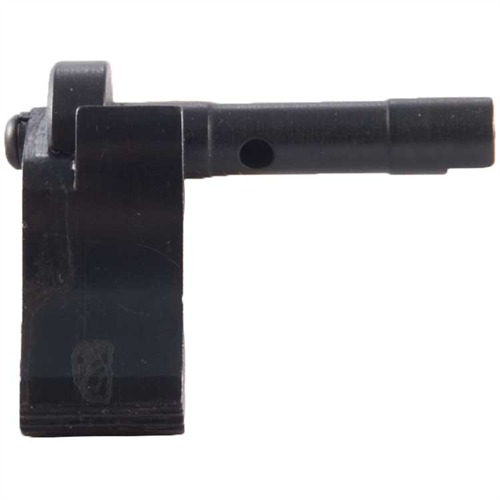

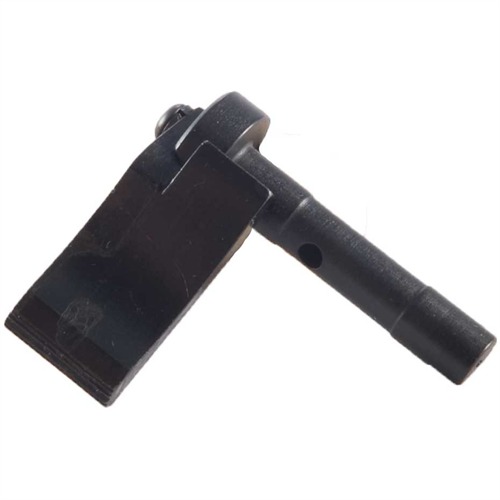

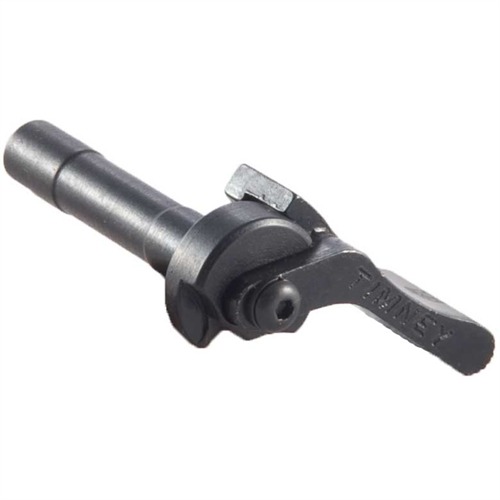

The re-make of the famous Buehler Low Safety. Faster and much more convenient to operate than the factory safety plus, it will not interfere with even the lowest mounted scopes. Rotates through a 70° arc on the right side of the rifle with positive stops in both the "on" and "off" positions. Securely holds the bolt and the striker in the locked position. Precision CNC machined from high-quality steel, hardened at all wear points, polished and blued. No machining required for installation on M98. M93/96 may require grinding of cocking piece.
Arresti Positivi in Posizione Acceso & Spento; Installazione Semplice e Veloce
La riproduzione del famoso Buehler Low Safety. Più veloce e molto più comodo da utilizzare rispetto al safety di serie, inoltre non interferisce con i cannocchiali montati più bassi. Ruota attraverso un arco di 70° sul lato destro del fucile con arresti positivi sia nella posizione "acceso" che "spento". Mantiene in modo sicuro sia il carrello che lo striker in posizione bloccata. Fresato CNC con precisione da acciaio di alta qualità, indurito nei punti di usura, lucidato e brunito. Non richiede lavorazioni per l'installazione su M98. M93/96 può richiedere la rettifica della parte di armamento.
SPECIFICHE: Acciaio, brunito. Larghezza .490" (12,4mm), lunghezza .725" (18,4mm). M98 compatibile con Mauser M98 & FN. M93/96 compatibile con Mauser 93, 94, 95, 96 & 97 ad Anello Piccolo.
Altro...
Punteggi dei clienti per TIMNEY M93/96 SAFETY
Numero di punteggi: 13
Da brownells.com: 13
Punteggio medio: 3,2
Requires Machining to Install(16/11/2009)
On the M-96 Swedish Mauser this safety requires at least 1/8" removed from the cocking piece to clear the safety body with a countersink for the safety screw head (my option). The other option is to grind about half of the cocking piece off on the safety side. Either way you also need to grind an angle on the cocking piece where the safety engages it. It helps to increase the bevel on the safety as well. The safety works okay - about like a Mark 2. Timney should modify to eliminate the machining - it wouldn't take much.
Nice product(01/10/2011)
I had to remove a bit of the lip on the lever portion to clear the standard safety ridge on the bolt shroud, and had to bevel down the engagement ramp as it will not clear the cocking piece as it comes. I used a Dremel with a cut-off wheel(VERY gently), and then a 240 sanding wheel to smooth it out. You could probably do the same with various grit sanding wheels. The screw is a T-7.
Does not work(15/08/2012)
Safety does not have spring and detent so is not functional as sent.
Beware of LOCTITE!!!!!(10/12/2014)
Installed this on a Voere, commercial Mauser. Pretty much dropped right in, I'll have to SLIGHTLY releive the cocking peice, but no big deal...
The BIG issue I had:
Timney apparently decided it was necessary to RED LOCTITE the screw in, on a part that HAS to be taken apart for installation!!!!!!!
Needless to say I have a stripped allen screw, and a pretty ugly mark on it where I wound up using pliers to then get the screw out!!!!!
IF you buy this, put some heat to it before you try to take the screw out.....
A product that really works(15/09/2009)
Very easy to install
Fitting was required!(01/06/2010)
I ordered the m98 safety, but the one I received must have been the m93/96. It required removal of quite a bit of material to fit properly.
Best aftermarket Mauser safety(16/08/2010)
Easy to install... just read and follow the directions. If you don't know enough or can't install this item correctly, you shouldn't be messing with the safety in the first place.
Great Product(05/03/2013)
I have installed over twenty of these safeties.. they are the best aftermarket M-98 Mauser safety available.... period!!!
Works well(10/02/2014)
I installed this safety on a Czech Brno 98 Mauser. I needed to grind away a little material off of the cocking piece to get it to work, but that is part of the normal installation. Going slow and testing it over and over as you remove material will get you a good fit. It's a good deal for the money. It's not a perfectly smooth safety, but it is way better than the original 3 position safety and this one will clear the scope.
Didn't work for me(21/07/2014)
Skimpy on the instructions and requires more fitting than I have tools for. Mine went in the spare parts box.
Overpriced garbage(17/07/2015)
tried installing in a vz-24 doesn't even bother to allow the bolt shroud to fully spin back into the bolt body.
Much love for Timney(12/12/2015)
Much easier to install than previous options. Looks great, works great. Take it to a smith for proper installation and testing because it is worth having on your Mauser.
Great part. Not so great instructions(29/09/2016)
I might be fortunate. I see some other reviews where fitting was required. This wasn't the case with my rifle. The timney safety dropped right in and was an excellent fit in my BRNO VZ24.
The instructions were a little light. I think they could have been a little more descriptive with the directions. Thankfully I am familiar with how a 98 Mauser safety works, and was able to get it installed regardless. Had it not been for the light instructions I would have rated this part 5 stars.
N. prodotto: 883805096 TIMNEY M93/96 SAFETY Parti Fabbricante: 1002081950010028 La riproduzione del famoso Buehler Low Safety. Più veloce e molto più comodo da utilizzare rispetto al safety di serie, inoltre non interferisce con i cannocchiali montati più bassi. Ruota attraverso un arco di 70° sul lato destro del fucile con arresti positivi sia nella posizione "acceso" che "spento". Mantiene in modo sicuro sia il carrello che lo striker in posizione bloccata. Fresato CNC con precisione da acciaio di alta qualità, indurito nei punti di usura, lucidato e brunito. Non richiede lavorazioni per l'installazione su M98. M93/96 può richiedere la rettifica della parte di armamento.
129.9EUR0129,90 €
*
In arretrato, tempi di consegna circa 4-12 settimane dal magazzino negli Stati Uniti.
La sicurezza BUEHLER-STYLE LOW SAFETY TIMNEY M93/96 è una riproduzione migliorata e più comoda del famoso Buehler Low Safety, ideale per l'uso con cannocchiali montati bassi.
Ruota attraverso un arco di 70° sul lato destro del fucile, mantenendo in modo sicuro sia il carrello che lo striker in posizione bloccata.
Fresato CNC da acciaio di alta qualità, è compatibile con Mauser M98, FN e modelli M93/96 con possibile necessità di rettifica della parte di armamento.
Caratteristiche
Adatto per:
Mauser
Modello:
93,94,95,96
Peso della spedizione: 0,032kgAltezza di spedizione: 10mmLarghezza di spedizione: 79mmLunghezza di spedizione: 107mm
UPC
: 081950010028
Dettagli dell'elemento
Made in Usa
Classificazione per l'export dagli US: 0A501.x
Questi articoli sono controllati dal governo degli Stati Uniti e ne è autorizzata l'esportazione solo nel paese di destinazione finale e l'uso solo da parte del destinatario finale o degli utenti finali qui identificati. Questi beni non possono essere rivenduti, trasferiti o altrimenti ceduti a nessun altro paese o a persone diverse dal destinatario finale o dall'utente finale autorizzati, nella loro forma originale o dopo essere stati incorporati in altri articoli, senza prima ottenere l'approvazione dal governo degli Stati Uniti o come altrimenti autorizzato dalla legge e dai regolamenti degli Stati Uniti.
This item is controlled by the U.S. government and authorized for export only to the country of ultimate destination for use by the ultimate consignee or end-user(s) herein identified. It may not be resold, transferred, or otherwise disposed of, to any other country or to any person other than the authorized ultimate consignee or end-user(s), either in their original form or after being incorporated into other items, without first obtaining approval from the U.S. government or as otherwise authorized by U.S. law and regulations.
