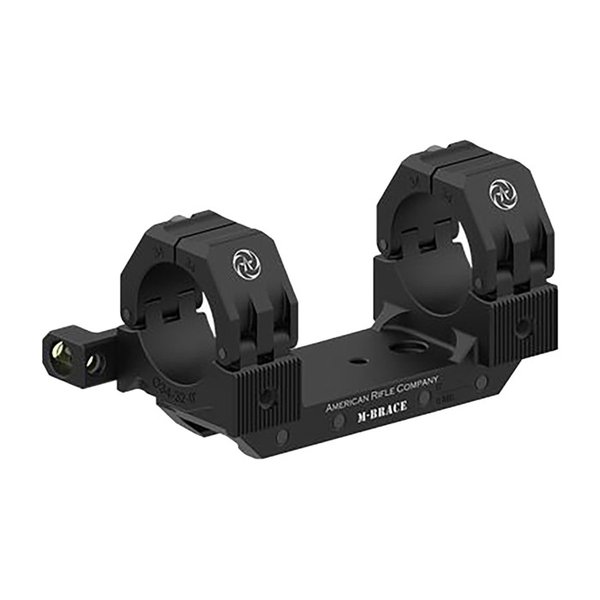

The M-BRACE Scope Mounting System embodies an evolutionary step taken from ARC's successful M10 Scope Rings that have served thousands of riflemen for over a decade. It is an engineered product standing alone in stark contrast to the conveniently designed gadgets for which engineering was never a consideration. NOTE: When attached to the far aft recoil slot in the picatinny rail on an action with 90 degree bolt rotation, the 32mm height M-BRACE serrated interface block may interfere with the bolt handle when opened. This issue can usually be avoided by moving the mount forward 1 slot in the picatinny rail. Torque spec: 6.2 Nm (55 in-lbs) on scope clamp and rail mount screws. Torque spec: 3.4 Nm (30 in-lbs) on bubble level screw.
Il sistema di montaggio M-BRACE per ottiche rappresenta un passo evolutivo derivato dai riusciti anelli per ottiche M10 di ARC, che hanno servito migliaia di tiratori per oltre un decennio. È un prodotto ingegnerizzato che si distingue nettamente dai gadget progettati per comodità, per i quali l'ingegneria non è mai stata una considerazione. NOTA: Quando è attaccato alla slot di rinculo posteriore sulla guida picatinny su un'azione con rotazione del bullone a 90 gradi, il blocco interfaccia seghettato M-BRACE di 32 mm di altezza potrebbe interferire con la maniglia del bullone quando è aperta. Questo problema può solitamente essere evitato spostando il montaggio in avanti di 1 slot sulla guida picatinny. Specifica di coppia: 6,2 Nm (55 in-lbs) sui bulloni di serraggio dell'ottica e sui bulloni di montaggio della guida. Specifica di coppia: 3,4 Nm (30 in-lbs) sul bullone del livello a bolla.
